VRC Team #99707K: The Robo Chickens

2017-2018:
VRC In the Zone

Game Description:

In VRC In the zone, points are scored by stacking cones on posts and mobile bases, moving mobile bases into zones, and parking on squares at the end of a match. A match starts with a 15 second autonomous period, where robots run pre-coded programs, without drivers. This is followed by a 1:45 driver control period.

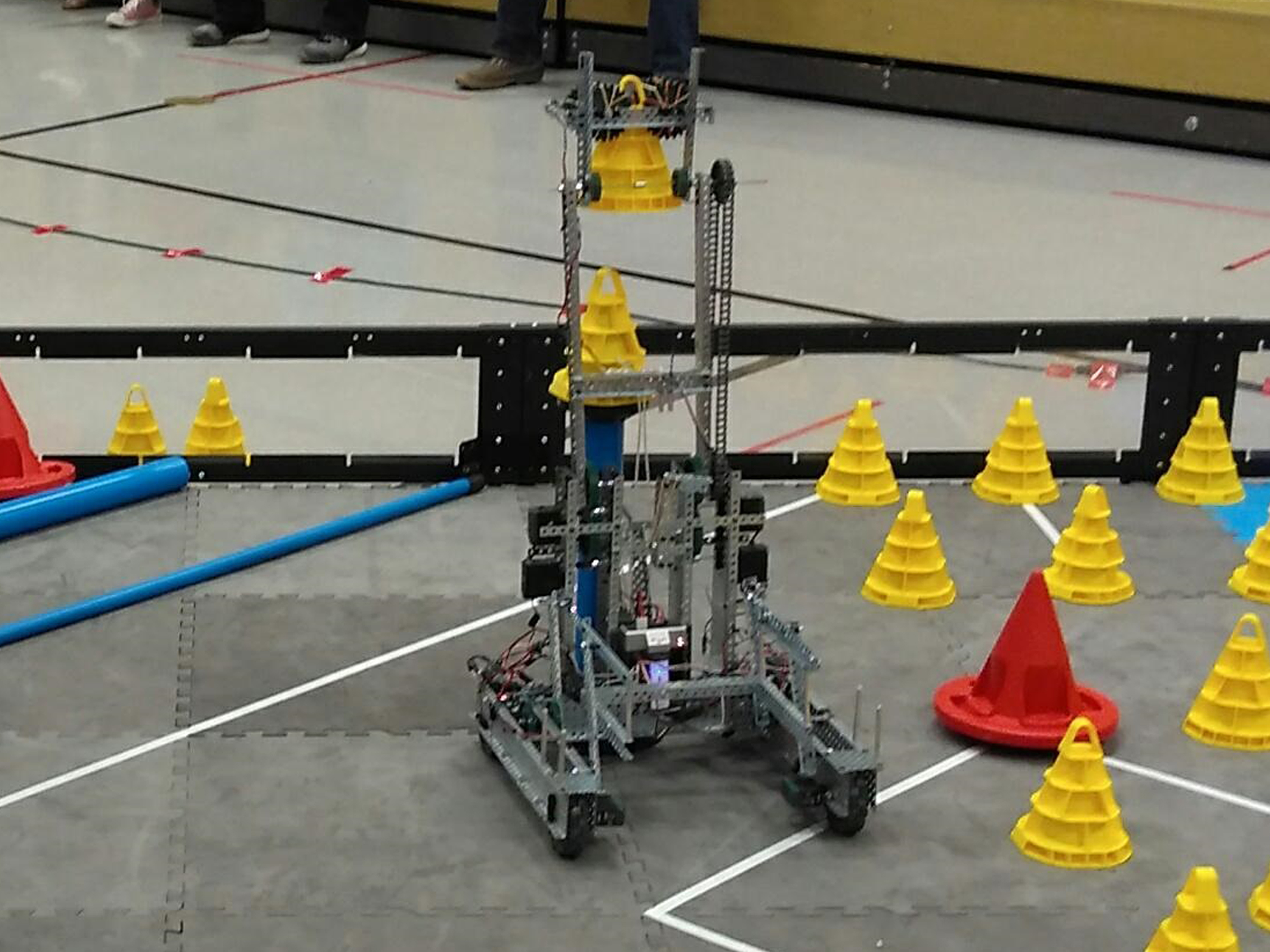

Our 2017-2018 robot, LOL66 2.0, stack cones on stationary and mobile bases, and then deposit mobile bases in the far zone. The robot could pick a mobile base on the back, and then pick up cones on the front and deposit them on the mobile goal. Then, the stack could be deposited into zones.

Specs:

• 4 motor hybrid U-frame base
  • 100 RPM motors with a 1:1 gear ratio
  • Max Speed: 1.75 ft/s or 1.2 mph
• 4 motor chain-bar lift.
  • 100 RPM motors with a 7:1 gear ratio.
  • Max Height: 30 inches
  • Max Capacity: Stack of 7 cones
• 1 motor goliath sprocket cone intake.
  • 100 RPM motor with a 5:1 gear ratio.
• 2 motor sideways 4-bar mobile goal lift.
  • 100 RPM motor with a 5:1 gear ratio
• Highest skills score: 52 points
• Autonomous: 10 points.
